Model: WALL5-5Kwh
Compact Capacity: 51.2V 100Ah (5.12kWh) LiFePO4 battery pack
Smart BMS: Intelligent management with 100A limit and full safety protection
Communication: Compatible with RS485, CAN, and RS232 protocols
Scalable Storage: Supports parallel connection (Address selection via DIP switch)
Robust Design: IP55 rated wall-mounted enclosure with natural cooling
Dimensions: Slim profile (620mm x 420mm x 160mm) for space-saving installation
Application: Optimized for household energy storage and backup power

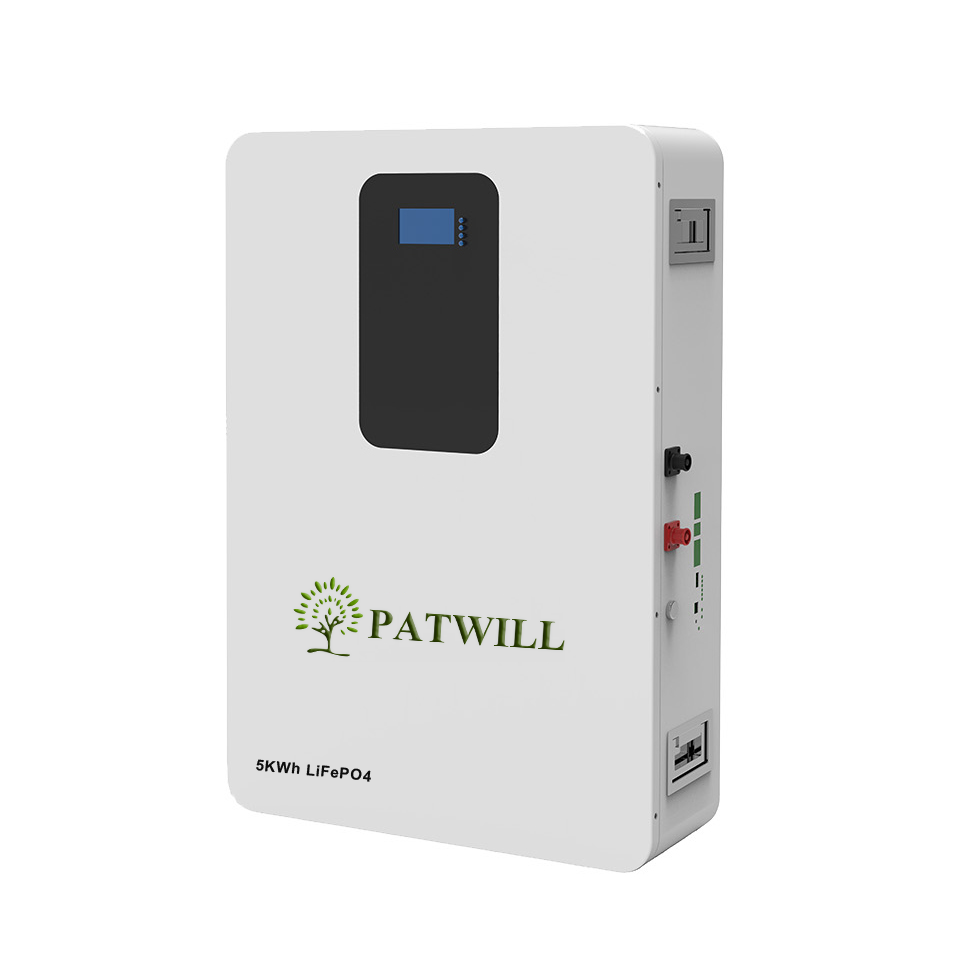

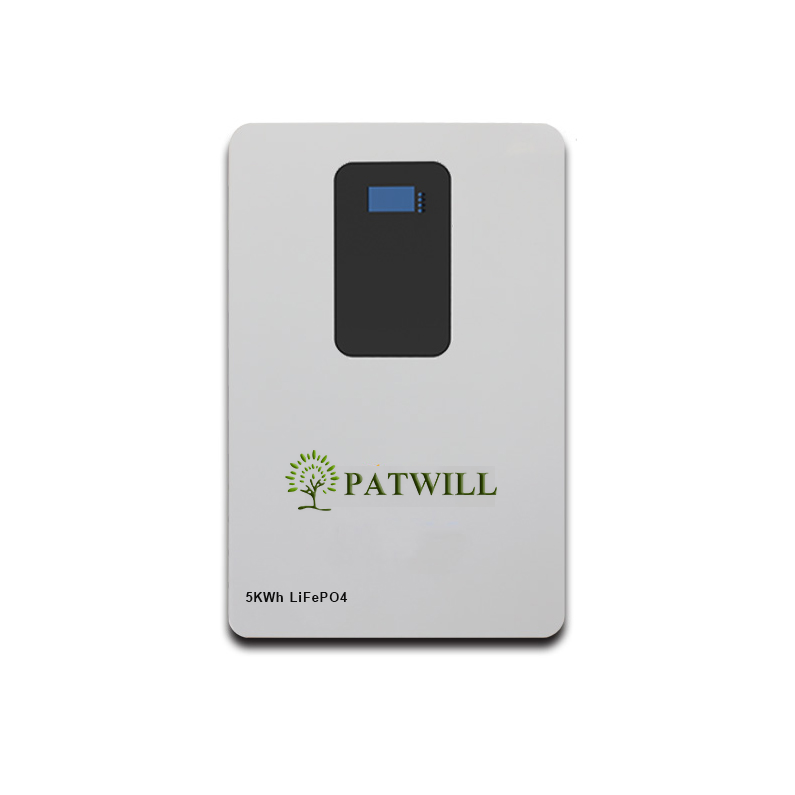

The Patwill WALL5-5Kwh is a premium 51.2V 100Ah Lithium Iron Phosphate (LiFePO4) battery pack engineered specifically for modern residential energy storage. Offering a total energy capacity of 5.12kWh, this unit provides a reliable power source for solar self-consumption and emergency backup. Its sleek, wall-mounted design maximizes floor space, making it an ideal solution for homes where space is at a premium.
At the heart of the system is a sophisticated Battery Management System (BMS) that continuously monitors cell performance, ensuring protection against voltage irregularities, temperature spikes, and short circuits. The robust SPCC metal enclosure is rated IP55, offering excellent durability and protection against dust and moisture. With built-in support for RS485 and CAN communication, the WALL5-5Kwh integrates seamlessly with leading inverter brands, delivering a smart, efficient, and safe energy storage solution for your home.
|
Feature
|
Specification
|
|---|---|
|
Model
|
WALL5-5Kwh
|
|
Nominal Voltage
|
51.2V
|
|
Nominal Capacity
|
100Ah
|
|
Total Energy
|
5.12 kWh (5120Wh)
|
|
Operating Voltage
|
40V - 58.4V
|
|
Charge Voltage
|
58.4V ±1V
|
|
Standard Charge Current
|
≤50A (Recommended)
|
|
Max Continuous Charge
|
100A
|
|
Max Continuous Discharge
|
100A
|
|
Discharge Cut-off Voltage
|
40V
|
|
Internal Resistance
|
≤30mΩ @1kHz AC
|
|
Self-Discharge Rate
|
≤3% per Month
|
|
Mechanical & Environmental
|
|
|
Dimensions (L x W x H)
|
620 ±10mm × 420 ±10mm × 160 ±10mm
|
|
Weight
|
Approx. 45.5kg
|
|
Installation Method
|
Wall-Mounted
|
|
Enclosure Rating
|
IP55
|
|
Cooling Method
|
Natural Cooling
|
|
Communication Ports
|
RS485, CAN, RS232
|
|
Discharge Temperature
|
0°C ～ 55°C
|
|
Charge Temperature
|
-20°C ～ 55°C
|
